V-Balls for Control

Description:

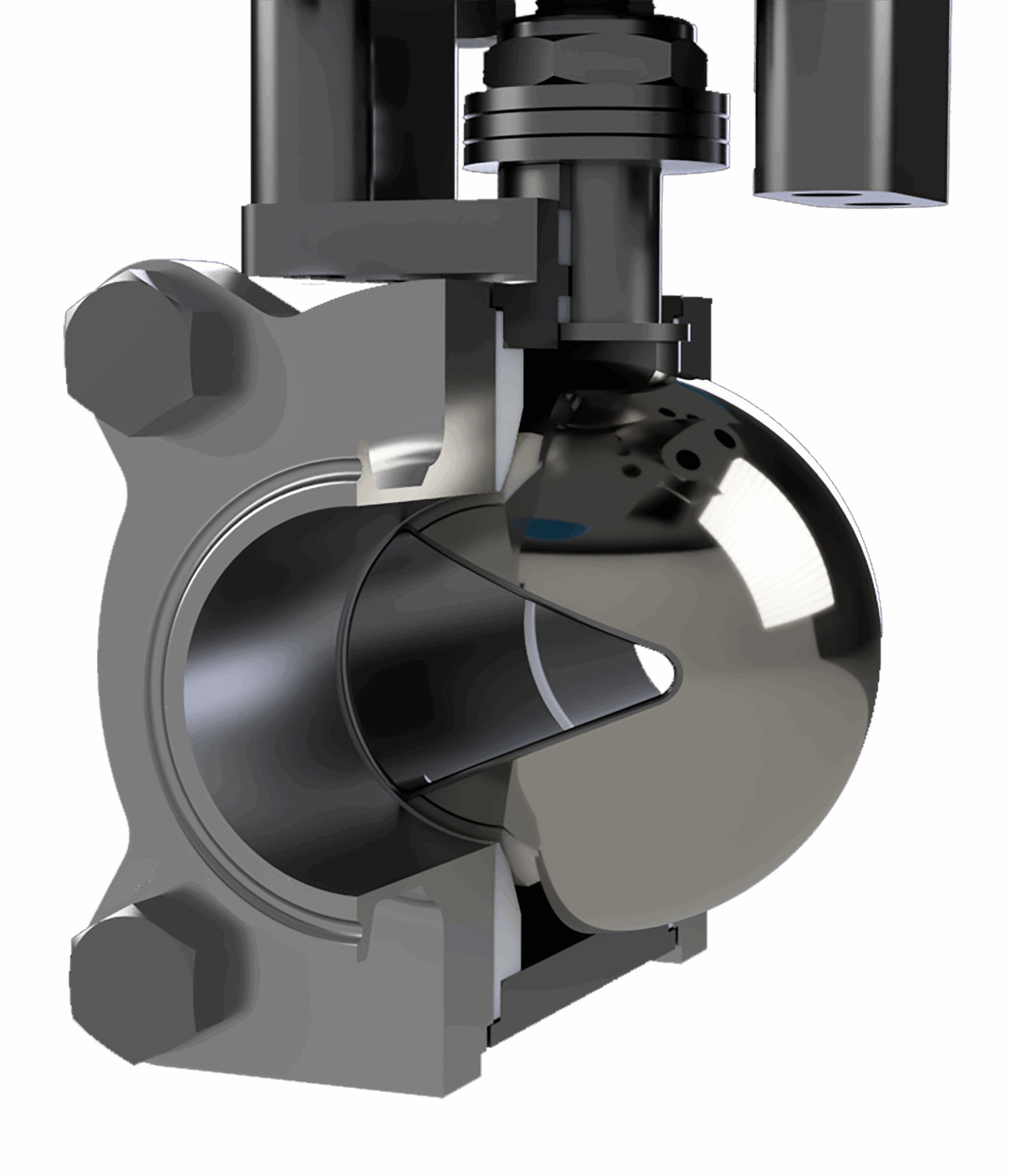

IMI PBM V-Balls allow for accurate control over the flow of liquids or thick media in industrial and sanitary throttling, keeping media flowing smoothly and giving accurate control through the entire valve stroke. This economical, low cost valve design translates into efficient, straight through flow, with a live-loaded rotary shaft sealing and tight shutoff in both directions.

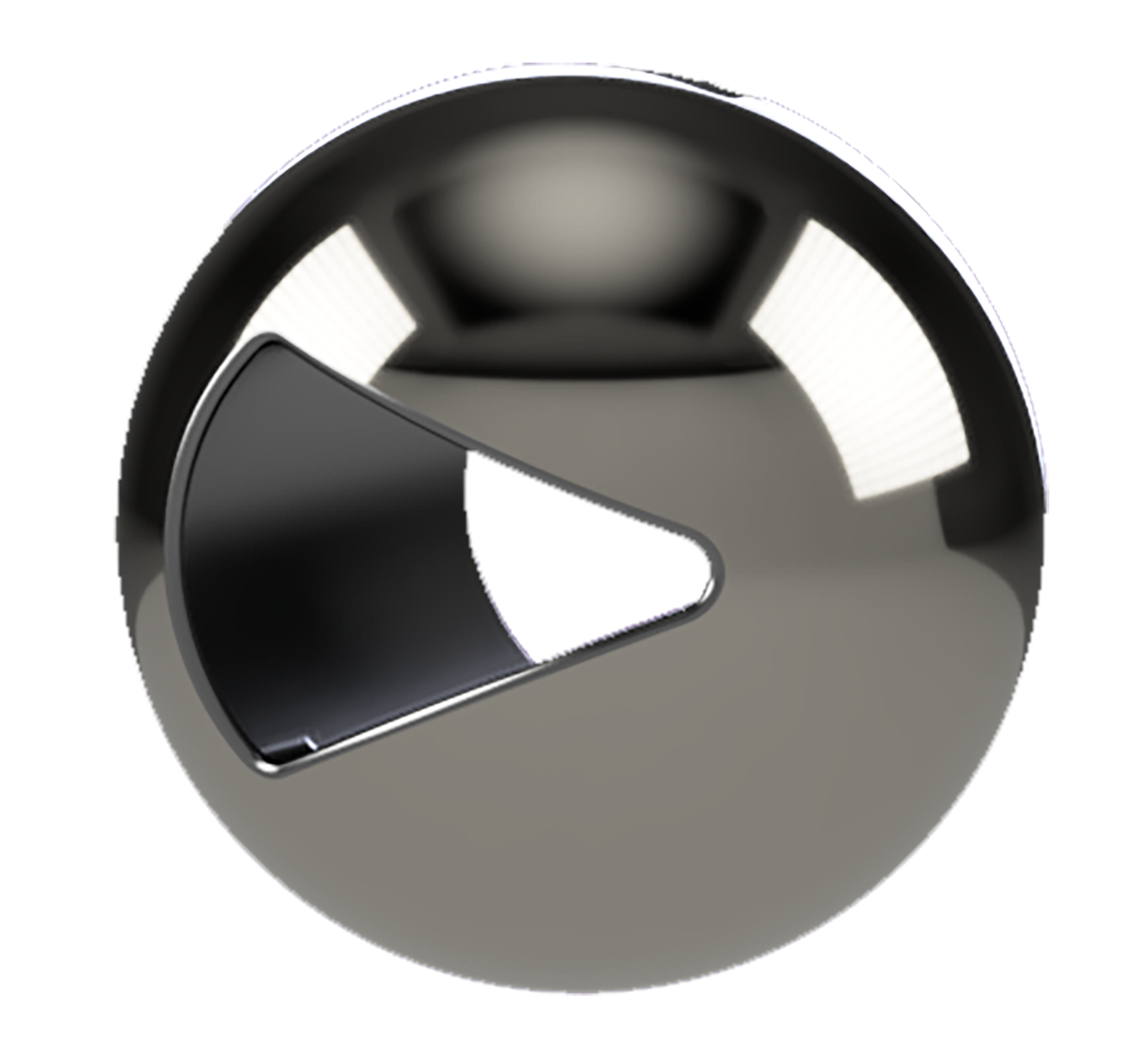

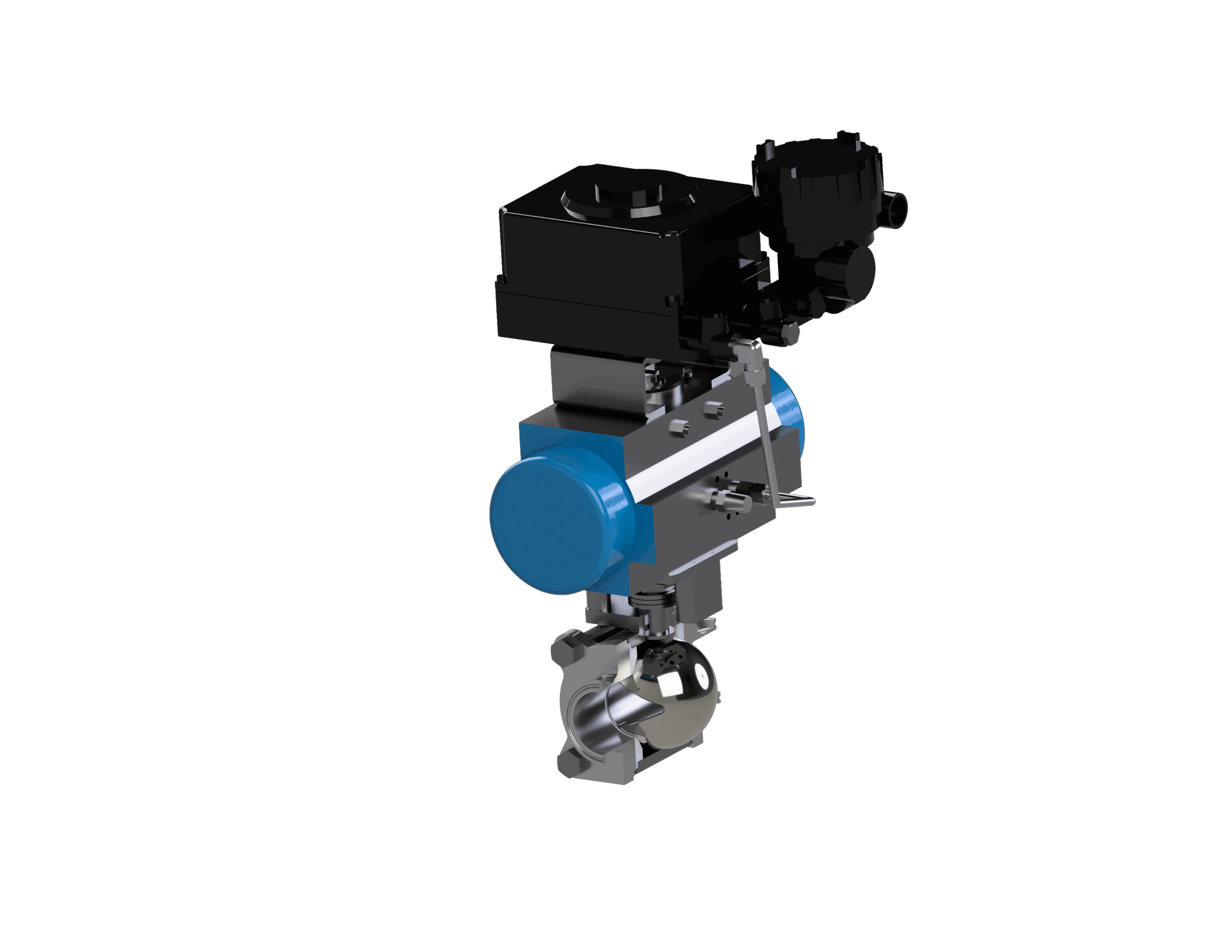

These valves also feature characterized balls with various port shapes, including V or slotted, either manual or automated. The IMI PBM V-Ball is available in any of our 2-Way series valves and can be combine with features such as purge ports, crown flats and polishing.
To calculate flow on IMI PBM’s V-Ball Control Valves download: IMI PBM-FLOW-CALC-2.07

IMI PBM is able to supply the valve size and ball configuration that best suits your manufacturing process with the following information:

  • Type of Media
  • Viscosity of Media
  • Inlet Pressure
  • Temperature
  • Allowable Pressure Drop
  • Flow Rate

Available in 316L Stainless Steel, Hastelloy®, titanium, Inconel®, bronze, and others

For flow calculations, please contact a member of the IMI PBM Inside Sales team
or email info.pbmvalve@imiplc.com.
