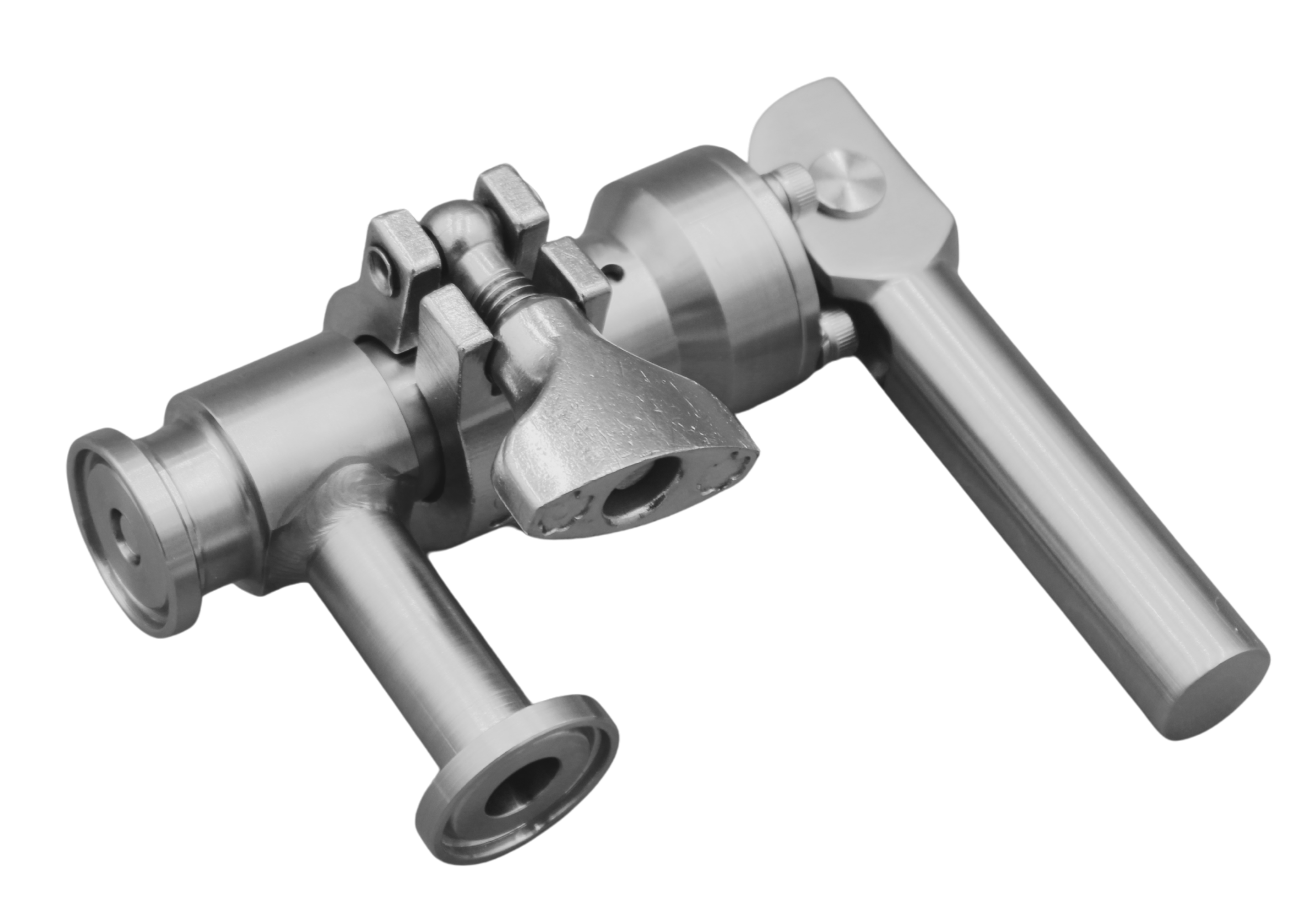

Rising Stem Sampling Valves


IMI PBM’s Rising Stem Sampling valves are specifically designed for taking process samples in pharmaceutical, biotechnology, & chemical manufacturing, breweries, wineries, food and beverage, and manufacturing facilities to ensure quality, consistency, taste, sterility. Sampling is extremely important at all stages of production, as it allows for trials and analyses and is often the way a potential problem is caught.

  • 316L Stainless Steel ASTM A351CF3M or A479S31603
  • No tools required for disassembly
  • Product line or vessel connection 1/2-inch weld, 1/2-inch clamp, 11/2-inch clamp
  • Large Nylon 6/6 knob
  • Viton or EPDM O-ring and Viton body gasket
  • V-TEF™ seat
  • All materials are FDA compliant
  • 32 Ra ID wetted surfaces
  • Meets USP Class VI with EPDM O-ring
  • Actuated Sampling valves available
  • Tri-Clamp® Inlet
  • Tri-Clamp® , Swickle  or Hose Barb Outlet
  • Tri-Clamp® Purge Port connection
  • Optional SIP/CIP ports
  • Locking plastic cover
  • Finer finishes, ID and OD, and electropolishing
